Custom ESP Cross Coupling Cable Protector Supplier, Factory

The ESP Cross Coupling Cable Protector is a core protective accessory specially designed for oilfield downhole Electric Submersible Pump (ESP) systems. It aims to provide comprehensive protection for ESP cables, control lines, encapsulated wire harnesses and injection pipelines in oil well bores, preventing them from being crushed, worn, stuck or sheared when passing through tubing collars during completion operations, pipe string running and retrieval. It ensures the long-term stable operation of the ESP system, reduces downhole maintenance costs and operational risks, and is widely used in various artificial lift oil wells, intelligent wells and sour oil and gas well scenarios.

Send Inquiry

Product Description

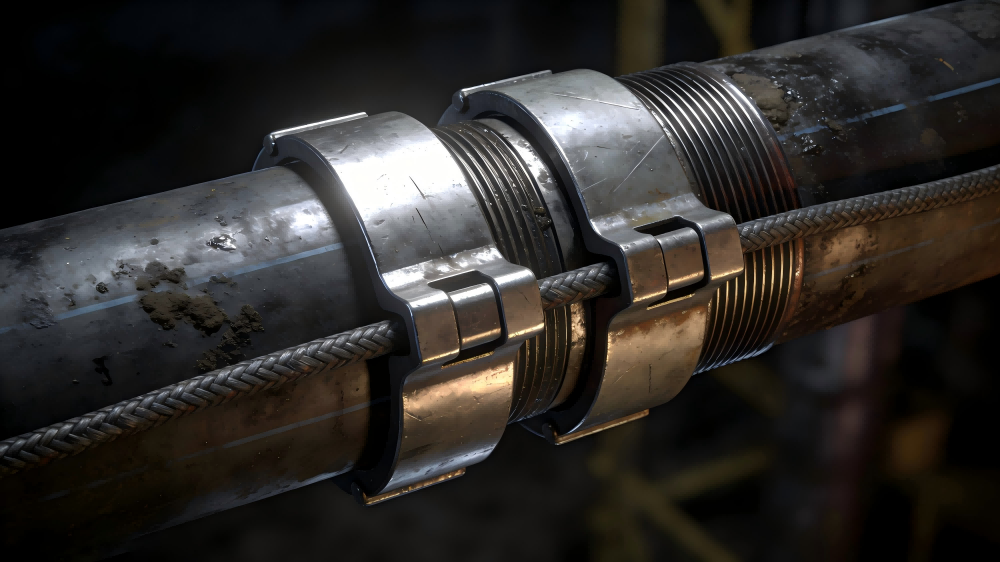

Core Structure and Material Advantages

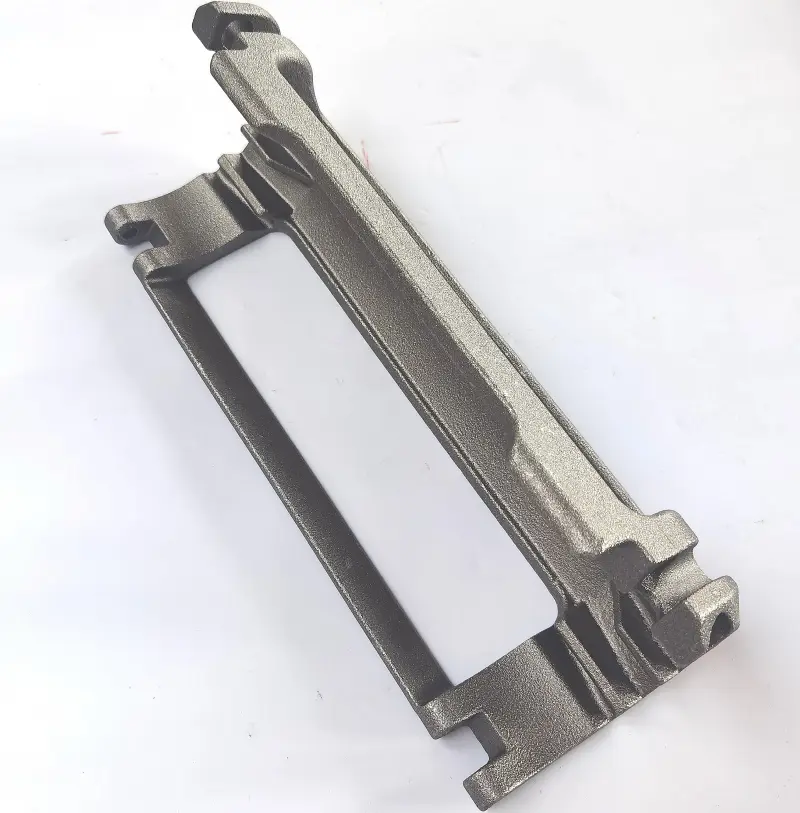

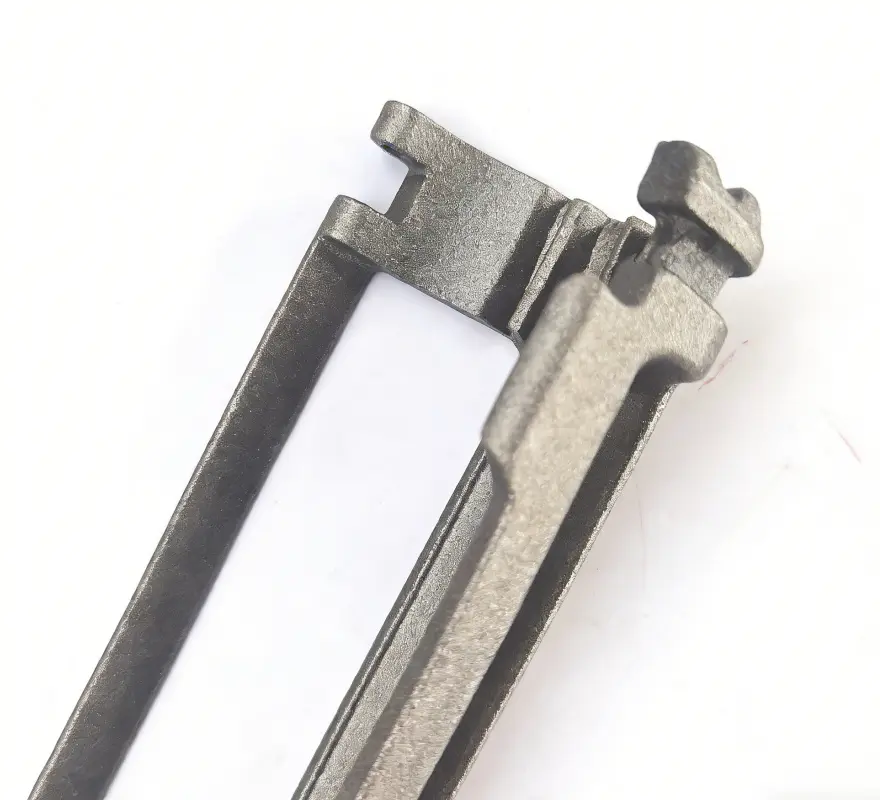

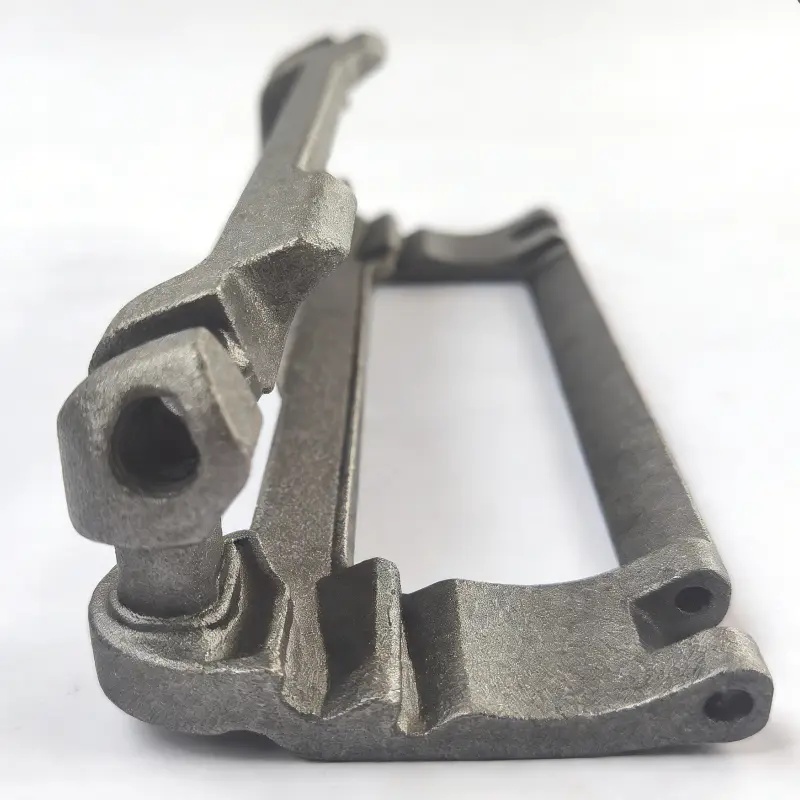

The product adopts an all-metal integral casting structure, and the core material is carbon steel (ASTM A216 WCB grade), stainless steel (304, 316 grade) or nickel-chromium alloy steel that meets NACE MR 01-75/95 standards. It can be flexibly customized according to working conditions such as sour medium, downhole temperature and pressure, with excellent corrosion resistance, impact resistance and structural stability, suitable for harsh downhole environments such as acid gas wells.

Optimized cable support "suspension" design minimizes the risk of cable damage due to extrusion. Streamlined leading edge profile avoids downhole sticking hazards.
Bolt head alignment with protective ribs improves wear resistance. Interlocking structure eliminates shear stress and prevents loosening.
Low-profile clamping arm design avoids collision damage through collar offset and casting body shielding, improving downhole adaptability.
Integral assembly without loose parts eliminates the risk of debris falling into the wellbore. Pre-engagement design shortens drilling operation time.
Elastic friction pad clamping system provides anti-slip and anti-rotation protection. Non-destructive clamping avoids cable conductor damage.

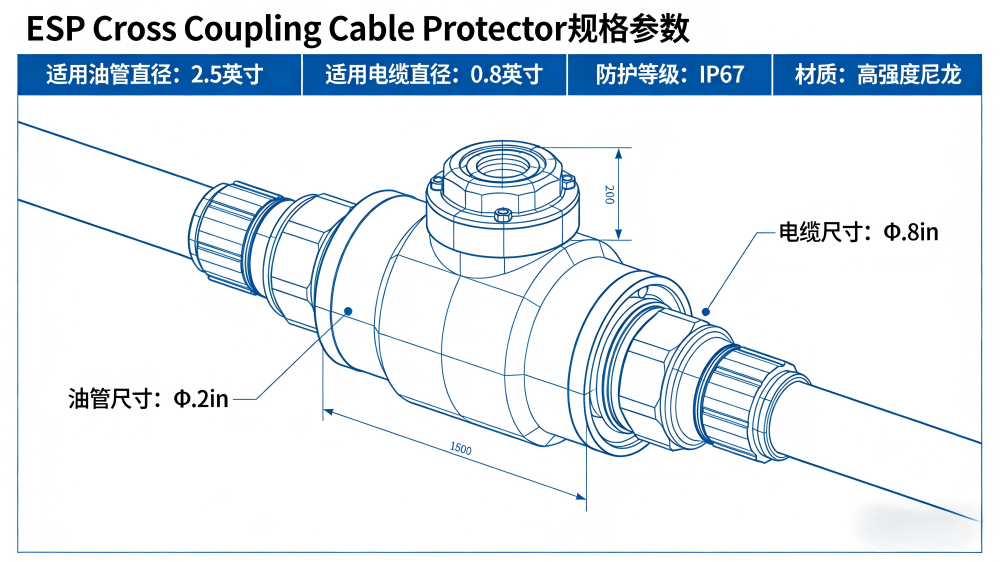

Key Performance and Specification Parameters

Tested to bear 30 tons of axial load and 20 tons of lateral load, ensuring no slipping or deformation under complex downhole stress. It supports at least 100 feet of ESP cables without crimping damage.

Tubing Adaptation: 2-3/8″ to 13-3/8″, compatible with API and high-end joints like EUE, VAM Top, and New VAM.
Cable Range: Compatible with #1, #2, #4, #6 round/flat/square ESP cables and 1/4″ to 0.43″ capillary pipelines.
Manufacturing: Investment casting process eliminates defects and ensures high dimensional accuracy. MPI and slip tested.
Reusability: Fully recyclable and reusable after simple renovation, reducing equipment investment costs.

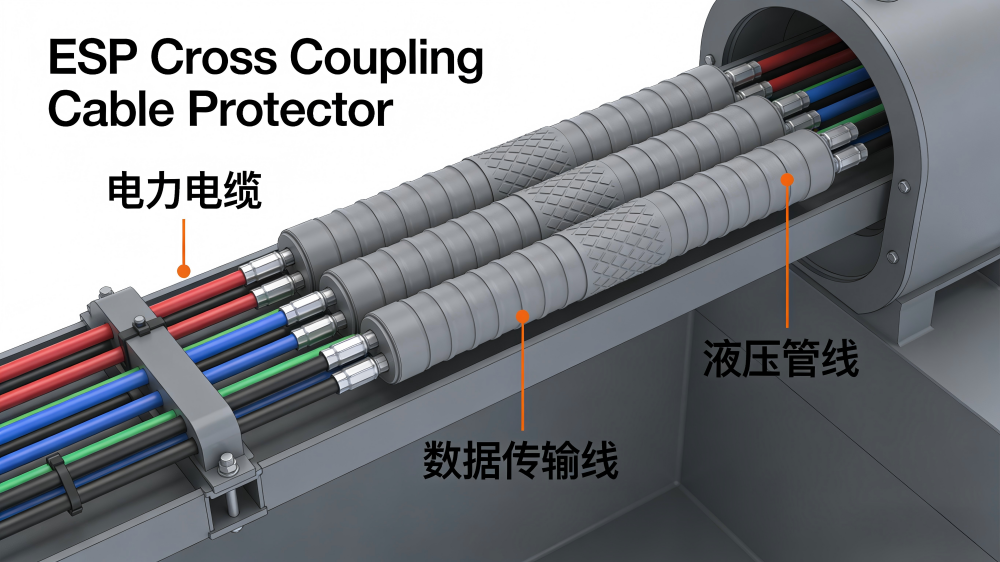

Application Scenarios and Core Applications

Ideal for various downhole ESP systems, artificial lift oil wells, sour oil/gas wells, and intelligent wells.

ESP Cable Protection: Guards power cables from friction and collision at tubing collars.
Multi-type Pipeline Protection: Simultaneously protects control lines, chemical injection pipelines, optical fibers, and safety valve lines.

Frequently Asked Questions

Q: What materials are used for these protectors? A: We use high-grade carbon steel (ASTM A216 WCB), stainless steel (304/316), and nickel-chromium alloys compliant with NACE MR 01-75/95 for superior corrosion resistance.

Q: What is the maximum load capacity? A: The protectors are designed to withstand up to 30 tons of axial load and 20 tons of lateral load without deformation.

Q: Which tubing sizes are compatible? A: Our standard range covers 2-3/8″ to 13-3/8″ tubing, fitting API and premium joints like EUE and VAM Top.

Q: Can these protectors be reused? A: Yes, they are fully recyclable and can be reused after a simple inspection and replacement of minor accessories.

Q: How do you prevent the bolts from falling into the well? A: We use an interlocking structure and pre-engagement design which eliminates shear stress on bolts and prevents them from loosening.

Q: Are they suitable for sour gas environments? A: Absolutely. By using NACE-compliant materials, our products are specifically engineered for harsh, corrosive downhole conditions.
